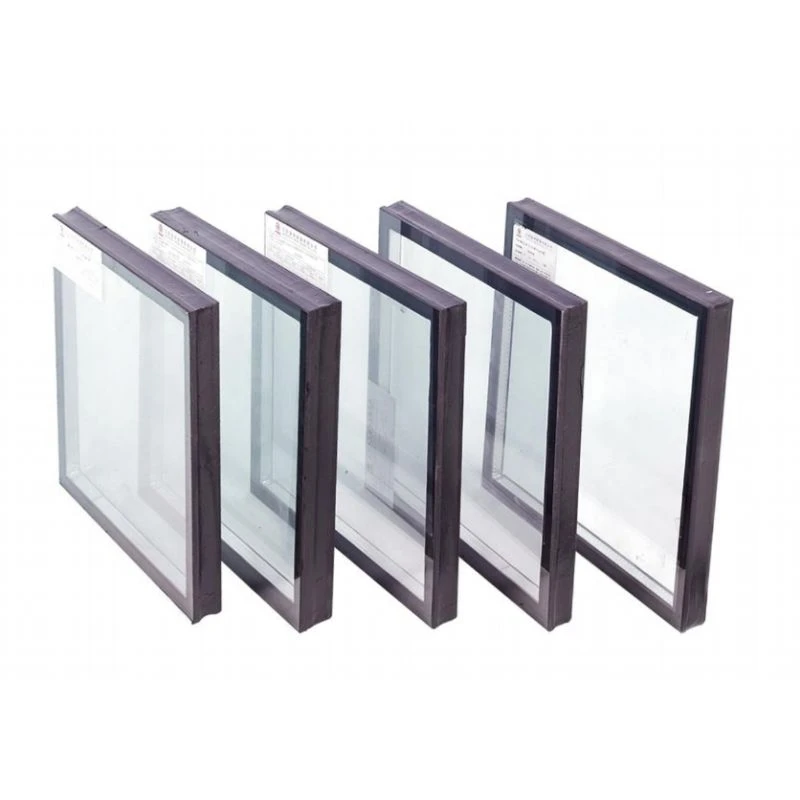

Low-E Insulated Glass Door
The low-e insulated glass door features advanced low-emissivity coating that improves thermal performance for commercial refrigeration. This technology reflects infrared heat while allowing maximum visible light transmission.
Product Specifications
|
Item |
Specification |
|
Model |
IG-01 |
|
Low-E Coating |
Double-Sided Soft Coat |
|
Glass Structure |
4mm Low-E + 12A + 4mm Clear |
|
Insulation Gas |
90% Argon |
|
U-Value |
≤ 1.5 W/m²·K |
|
Emissivity |
≤ 0.10 |
|
Visible Light |
72% Transmittance |
|
Solar Heat Gain |
≤ 0.45 SHGC |
|
Noise Reduction |
30-35 dB |
Product Advantage
1.Ultra-Low Emissivity Coating
Our low-e insulated glass door incorporates premium double-sided soft coat technology with emissivity ≤ 0.10, outperforming standard alternatives. This advanced coating reflects up to 90% of infrared heat energy back into the refrigerated space, reducing compressor runtime.
2.Optimized Light-to-Solar Gain Ratio
Each low-e insulated glass door achieves an exceptional light-to-solar gain ratio, delivering 72% visible light transmittance with a solar heat gain coefficient of just 0.45. This optimal balance ensures products remain brightly visible while minimizing solar heat gain.
3.Full Customization Services

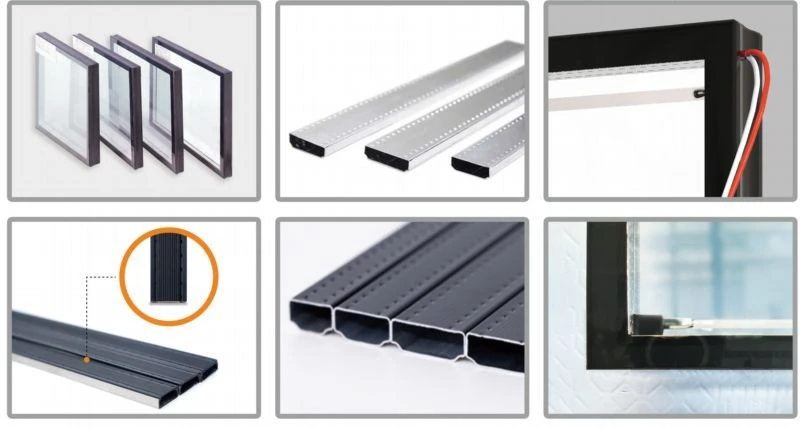

We provide comprehensive customization for the triple insulated glass door, including custom sizes, shapes, logo silk screen printing, and various edge processing options like polishing, chamfering, and hole drilling.
Global Logistics Network
We provide comprehensive global logistics for our low-e insulated glass door products, including protective packaging with foam cushioning and certified wooden crates. Our team manages all export documentation including CE and RoHS certification. MOQ starts at 70 units with optimized container loading.
Application Scenarios
The low-e insulated glass door is perfect for supermarket freezer aisles, grocery store beverage coolers, convenience store refrigerators, high-visibility display cases, walk-in coolers, and retail refrigeration in warm, high-humidity regions.
