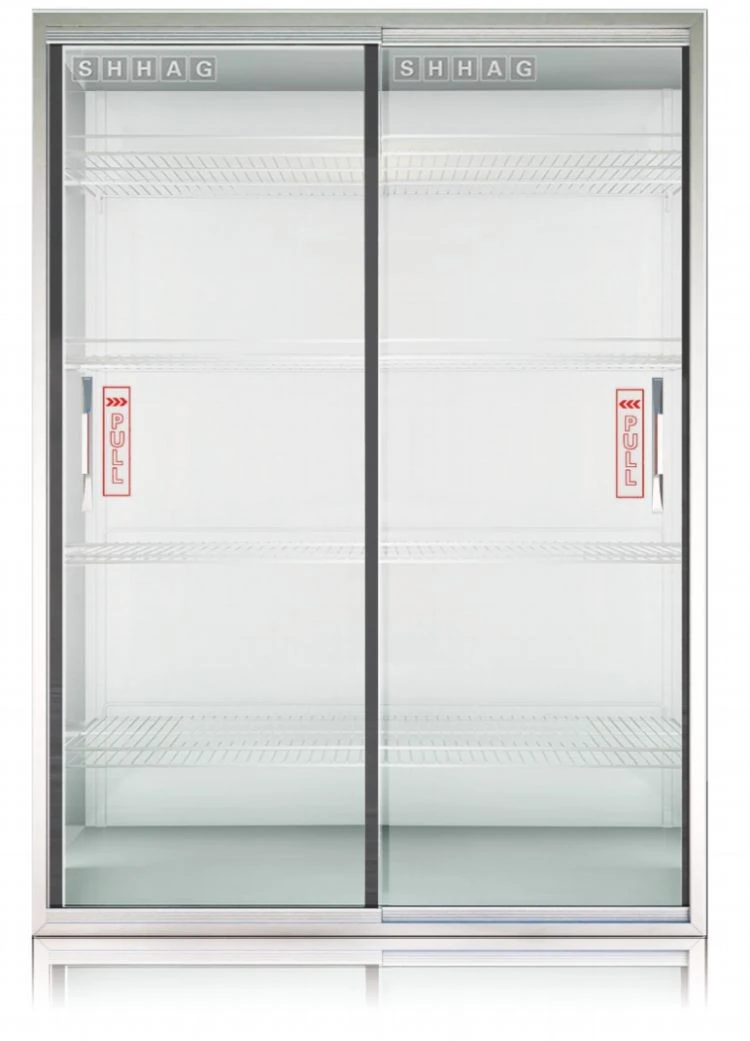

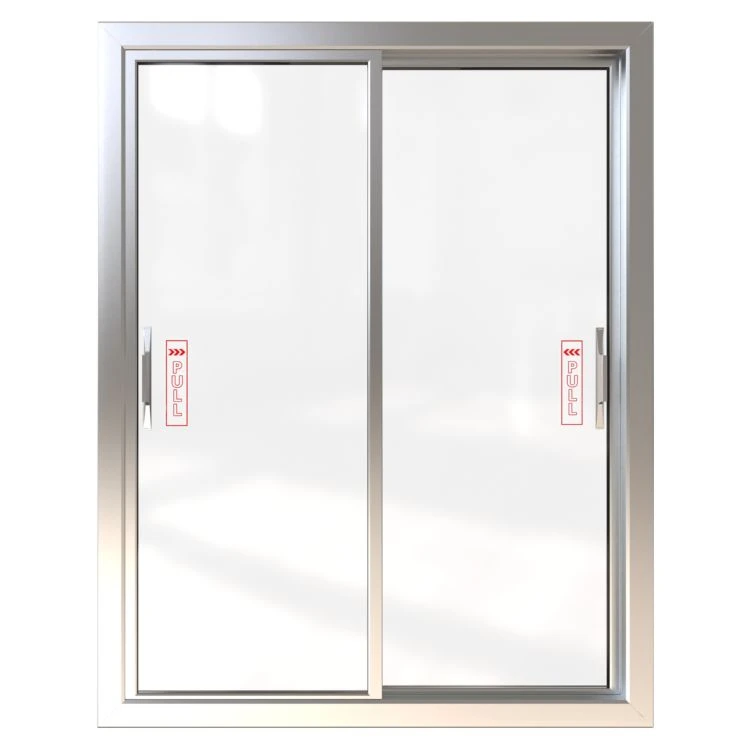

SL-D01 Anti-fog Sliding Glass Door
The SL-D01 Anti-fog Sliding Glass Door is purpose-built for commercial refrigeration display where crystal-clear product visibility is paramount. Engineered with a heated anti-fog glass system, this door actively prevents condensation and frost buildup on the glass surface-ensuring shoppers always enjoy a pristine, fog-free view of merchandise inside. The pillar-free dual-panel sliding design expands the visible display area, while double tempered glass with ≥95% argon gas fill delivers exceptional thermal insulation. Housed in a corrosion-resistant non-heated aluminum alloy frame, the door features a factory-calibrated automatic closing mechanism and a patented limit block system, guaranteeing reliable, long-lasting performance in demanding retail environments.
Product Specifications
|
Item |
Details |
|
Model |
SL-D01 |
|
Type |
Anti-fog Sliding Glass Door |
|
Glass Structure |
Double tempered hollow glass, filled with argon gas (95%+) |
|
Frame Material |

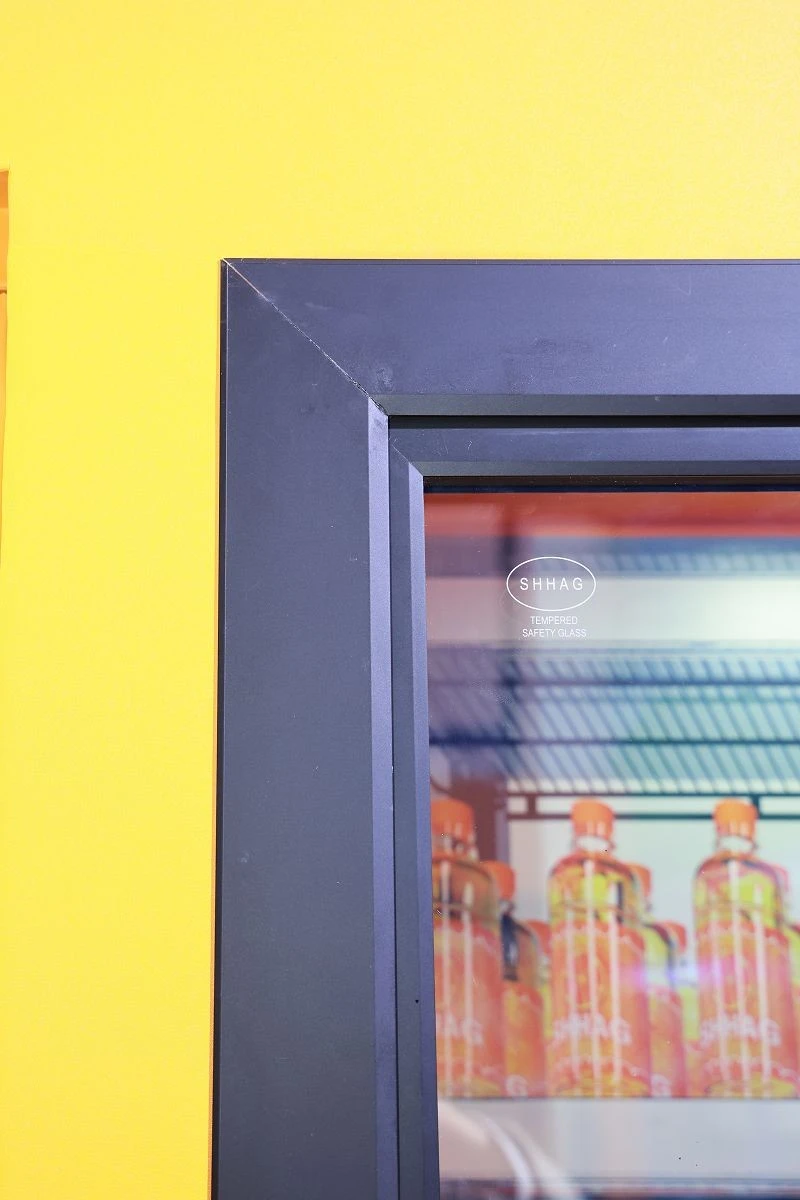

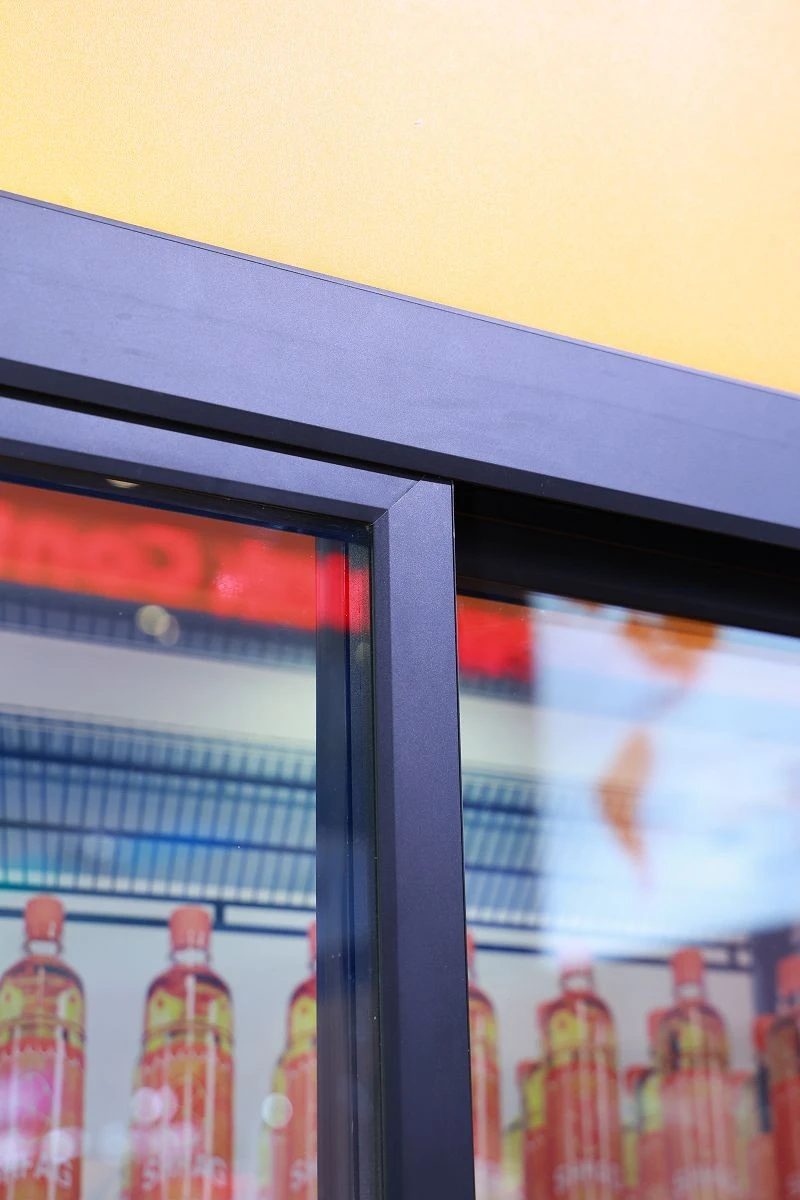

Non-heated aluminum alloy profile |
|
Handle |

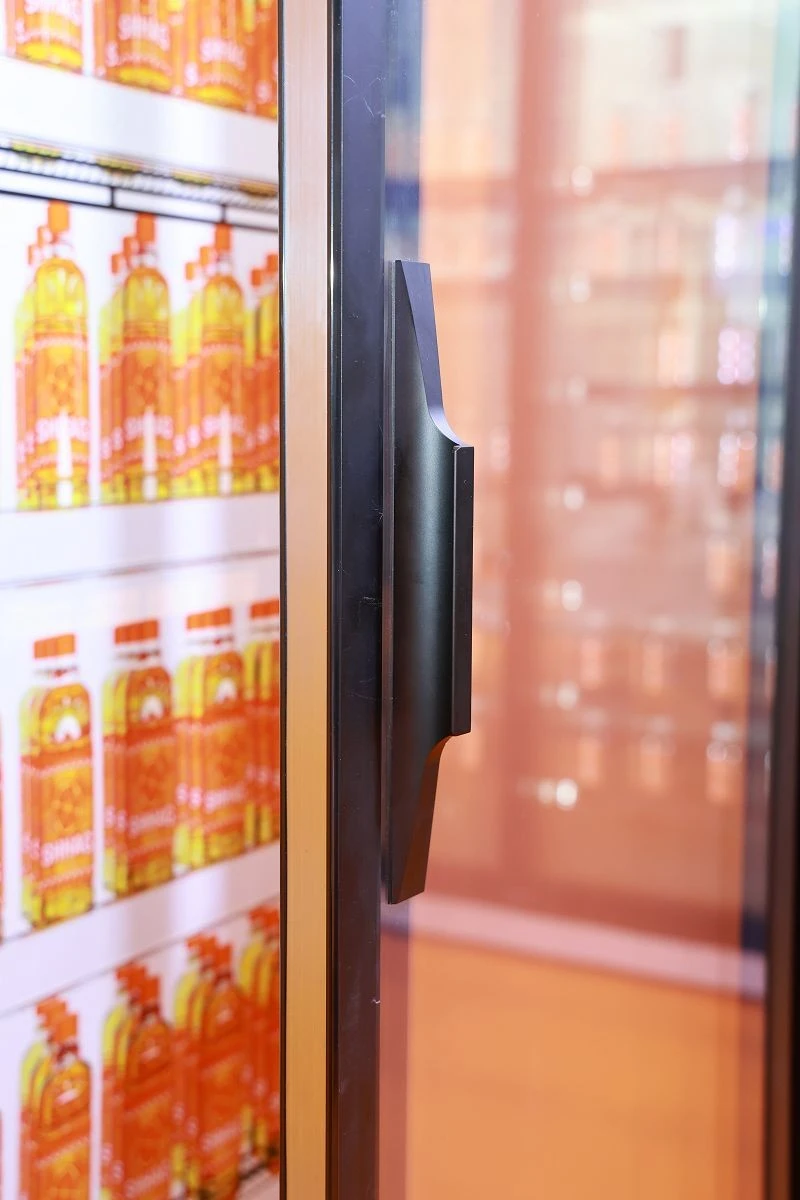

Slim length handle |
|
Sealing |
Magnetic frame gasket + sealing strips |
|
Limit Block |
Patented limit block (Invention Patent) |
|
Anti-fog Function |
Heated anti-fog glass (standard) |
|
Standard Color |
Black / Silver |
|
Self-Closing System |
Standard |
|
Application |
Walk-in cooler, Walk-in freezer, Reach-in refrigerated cases, Multideck display refrigerator |
Available Options
|
Option |
Details |
|
Heated Door Rail |
Optional upgrade for extreme low-temp environments |
|
Custom Sizes |
Tailored dimensions on request |
|
Color Options |
Black, Silver |
|
Custom Logo |
Silk screen / UV printing supported |
|
Energy-saving Temperature Sensor |
Optional |
Product Advantages
Patented Limit Block Technology
Our proprietary limit block is protected by an invention patent, delivering superior door travel control with precision-engineered stopping force. It prevents over-extension damage to the sliding mechanism, extends the door's service life, and ensures smooth, safe operation over hundreds of thousands of opening cycles.
Fog-Free Clarity in Any Condition
The integrated heated anti-fog glass technology actively raises the glass surface temperature to prevent condensation and frost formation-even in high-humidity or sub-zero environments. This ensures permanently clear visibility, eliminating the need for manual defrosting and maximizing product appeal at the point of sale.
QA&QC
We provide rigorous quality inspection services, and our products are certified by UL, CE, ROHS, and other standards.
Strategic Partners with SHHAG
3,800 customers from more than 70 countries in the past 13years.
FAQ
Q: How does the anti-fog function work?
A: The heated glass system gently raises the glass surface temperature above the dew point, preventing moisture condensation. This keeps the glass clear and fog-free even in high-humidity or sub-zero environments, without requiring any manual intervention.
Q: Can this door handle freezer temperatures below -18°C?
A: Absolutely. The double tempered argon-filled glass provides reliable insulation for sub-zero environments. For especially demanding conditions, the optional heated door rail further prevents fogging and frost buildup.
Q: Do you offer custom branding on the glass door?
A: Yes. We support both silk screen and UV printing methods to apply your brand logo directly onto the glass and frame surfaces.
Q: What is special about your limit block?
A: Our limit block is protected by an invention patent. It provides precision door travel control, prevents over-extension damage, and has been tested through hundreds of thousands of opening cycles to ensure long-term durability and safety.
Q: Do you ship globally?
A: Yes, we deliver to over 70 countries worldwide. We work with major international logistics partners including Maersk, DHL, UPS, FedEx, and TNT. Standard in-stock items ship within 7 days; custom orders take 15-25 working days from Qingdao port.
